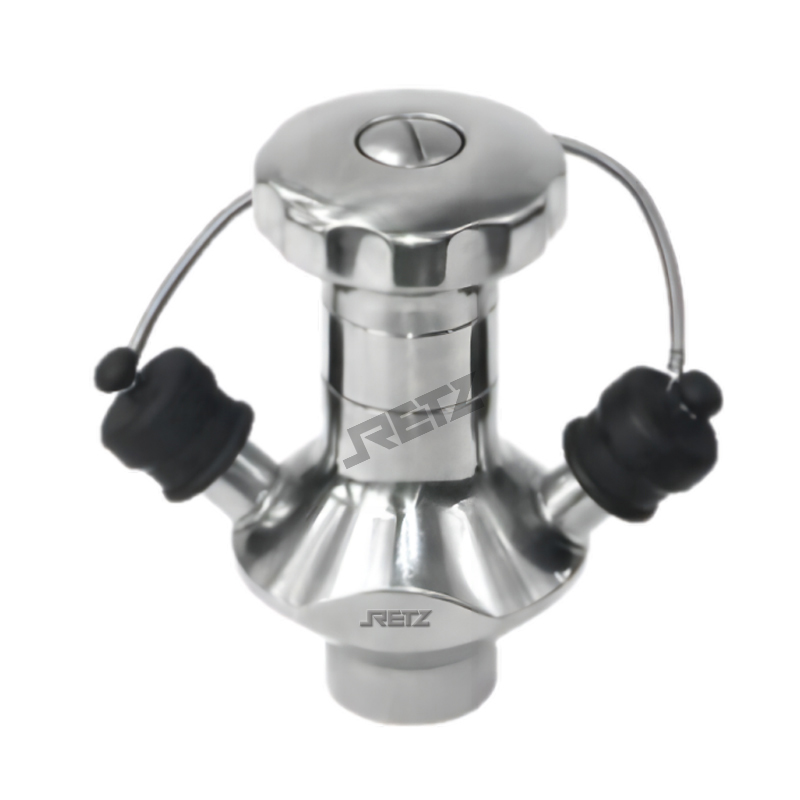

品牌：RETZ/我们一直致力于流体控制领域的持续创新，始于2005……进口自复位无菌取样阀每次取样前和取样后进行杀菌，适用于啤酒、牛奶、饮料、果汁、制药等行业 Retz imported self resetting sterile sampling valve for sterilization before and after each sampling, suitable for industries such as beer, milk, beverages, juice, pharmaceuticals, etc

进口自复位无菌取样阀开启阀门：取样-通过旋转手轮开启阀门 Opening the valve: Sampling - Opening the valve by rotating the handwheel

进口自复位无菌取样阀关闭阀门：消毒-松开自动复位，关闭阀门，保持软管间的通道开启，用于消毒。如果使用蒸汽，建议在出口装一个小型的压力安全阀 Close the valve: Disinfect - release the automatic reset, close the valve, and keep the passage between the hoses open for disinfection. If steam is used, it is recommended to install a small pressure safety valve at the outlet

灭菌：sterilization

1、将蒸汽软管连接到阀的上部连接管上 Connect the steam hose to the upper connecting pipe of the valve

2、打开蒸汽源，让它流过阀以进行灭菌。在121℃下持续1分钟 Open the steam source and let it flow through the valve for sterilization. Continue at 121 ℃ for 1 minute

3、关闭蒸汽源 Turn off steam source

4、移走蒸汽软管，把一个无菌橡胶塞或无菌蒙板安装到上部连接管上 Remove the steam hose and install a sterile rubber stopper or sterile mask onto the upper connecting pipe

●规格SIZE:3/8 -2"

●最高温度Max temperature：-20到130℃(取决于密封材质)(不锈钢执行器)

●最高压力Max pressure：10bar

●阀体材质material quality：SS304、 316L

●膜片材料Diaphragm：EPDM、PTFE

●连接方式Connection method：卡箍、焊接、罐体连接器、多通道管路连接器 Clamp, welding, can body connector, multi-channel pipeline connector

●操作方式operating mode：手动和气动 Manual and pneumatic
