品牌：RETZ/我们一直致力于流体控制领域的持续创新，始于2005……进口手动卫生级取样阀适用于食品、制药、生物技术乳品，酸奶，饮料，果汁，饮用水，植物蛋白饮料，啤酒，白酒，调味品，酱料，发酵，日化，个人护理等

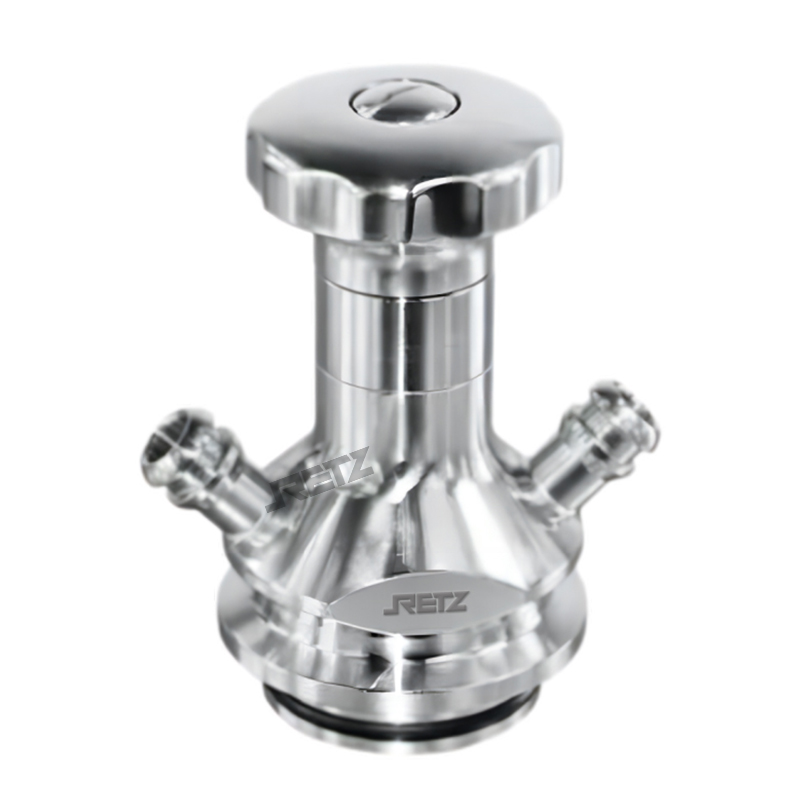

Retz imported manual sanitary sampling valve is applicable to food, pharmaceutical, biotechnology dairy products, yogurt, beverages, fruit juice, drinking water, vegetable protein drinks, beer, Baijiu, condiments, sauces, fermentation, daily chemicals, personal care, etc

卫生无污染,确保卫生和无污染采样；工作原理简单，易于操作；所有耐磨损零件操作高度可靠（额定压力10巴）

Hygiene and pollution-free, ensuring hygiene and pollution-free sampling; The working principle is simple and easy to operate; Highly reliable operation of all wear-resistant parts (rated pressure 10 bar)

强化可清洁性,阀体由不锈钢单件制成，可提供光滑、无缝隙的表面，消除细菌堆积的风险

Enhanced cleanliness, the valve body is made of single stainless steel parts, providing a smooth, seamless surface and eliminating the risk of bacterial accumulation

阀闭合：消毒 Valve closure: disinfection

当阀关闭时，打开阀口这间的通道以便进行消毒，如果使用蒸汽消毒，则建议在出口上使用小型压力释放阀 When the valve is closed, open the channel between the valve ports for disinfection. If steam disinfection is used, it is recommended to use a small pressure relief valve on the outlet

阀开启：取样 Valve opening: sampling

当阀打开时，阀杆和膜片密封将收缩，从而允许液体通过。通过使用标准附件，可能进行无菌取样。这些附件专用于确保进行消毒时的条件合适（2bar-121℃）。绝热材料可避免烫伤。

When the valve opens, the valve stem and diaphragm seal will contract, allowing liquid to pass through. By using standard attachments, sterile sampling may be performed. These accessories are specifically designed to ensure that the conditions for disinfection are suitable (2bar-121 ℃). Insulation materials can prevent burns

●规格SIZE:3/8 -2"

●温度Max temperature：-20到130℃(取决于密封材质)(不锈钢执行器)

●压力Max pressure：10bar

●阀体材质material quality：SS304、 316L

●膜片材料Diaphragm：EPDM、PTFE

●连接方式Connection method：焊接、卡箍Welding, clamps

●操作方式operating mode：手动和气动 Manual and pneumatic

RETZ的卫生级阀门可以满足工控系统的截断、安全、控制、洁净的控制产品涵盖了：进口卫生级隔膜阀、蝶阀、球阀、安全阀、截止阀、疏水阀、泵、取样阀、电磁阀、电动阀、气动阀、调节阀。

富林克致力于作为流体控制专家，负责中国地区RETZ产品的营销管理和服务，从而创造价值的企业，RETZ以“坚持更好的品质”为根本，以“持续实现具有创造性、高品质产品和服务的企业价值，为当今社会的繁荣作出贡献”为企业理念
