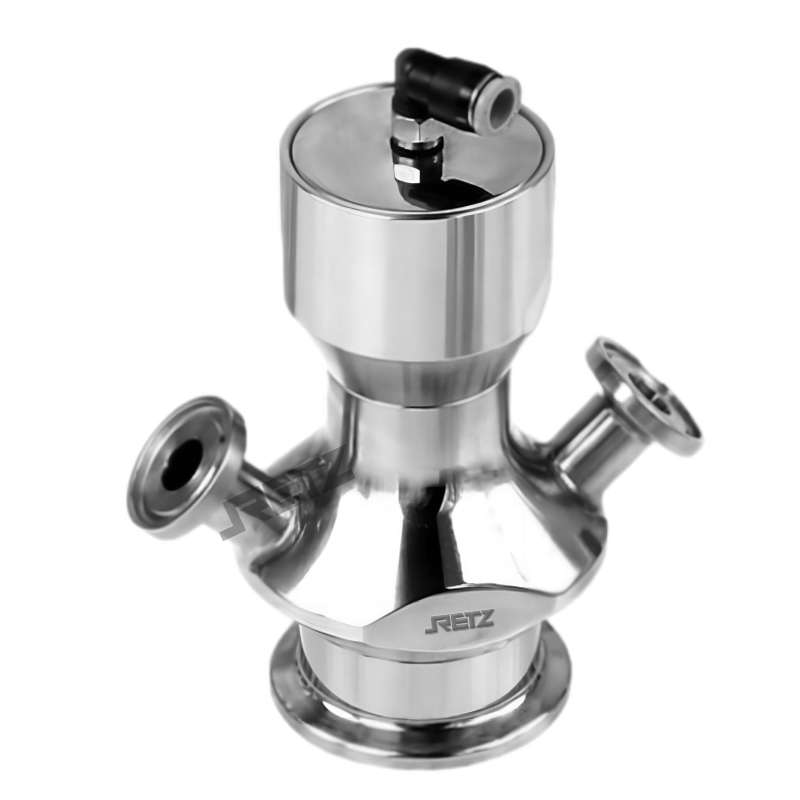

品牌：RETZ/我们一直致力于流体控制领域的持续创新，始于2005……进口气动无菌取样阀每次取样前和取样后进行杀菌，适用于啤酒、牛奶、饮料、果汁、制药等行业 The retz imported pneumatic sterile sampling valve performs sterilization before and after each sampling, suitable for industries such as beer, milk, beverages, juice, pharmaceuticals, etc

进口气动无菌取样阀开启阀门：取样-通过气动开启阀门 Opening the valve: Sampling - Opening the valve pneumatically

进口气动无菌取样阀关闭阀门：消毒-断气关闭阀门，保持软管间的通道开启，用于消毒。如果使用蒸汽，建议在出口装一个小型的压力安全阀 Close the valve: Disinfect - cut off the gas and close the valve, keeping the passage between the hoses open for disinfection. If steam is used, it is recommended to install a small pressure safety valve at the outlet

●规格SIZE:3/8 -2"

●温度Max temperature：-20到130℃(取决于密封材质)(不锈钢执行器)

●压力Max pressure：10bar

●阀体材质material quality：SS304、 316L

●膜片材料Diaphragm：EPDM、PTFE

●连接方式Connection method：卡箍、焊接 Clamps, welding

●操作方式operating mode：手动和气动 Manual and pneumatic

RETZ的卫生级阀门可以满足工控系统的截断、安全、控制、洁净的控制产品涵盖了：进口卫生级隔膜阀、蝶阀、球阀、安全阀、截止阀、疏水阀、泵、取样阀、电磁阀、电动阀、气动阀、调节阀 RETZ's sanitary valves can meet the requirements of cutoff, safety, control, and clean control in industrial control systems. The products include imported sanitary diaphragm valves, butterfly valves, ball valves, safety valves, globe valves, drain valves, pumps, sampling valves, solenoid valves, electric valves, pneumatic valves, and regulating valves

富林克致力于作为流体控制专家，负责中国地区RETZ产品的营销管理和服务，从而创造价值的企业，RETZ以“坚持更好的品质”为根本，以“持续实现具有创造性、高品质产品和服务的企业价值，为当今社会的繁荣作出贡献”为企业理念
